Products - compact corrosive products

compact corrosive products

Model Description

Linear System Corrosive Products Multi-Format

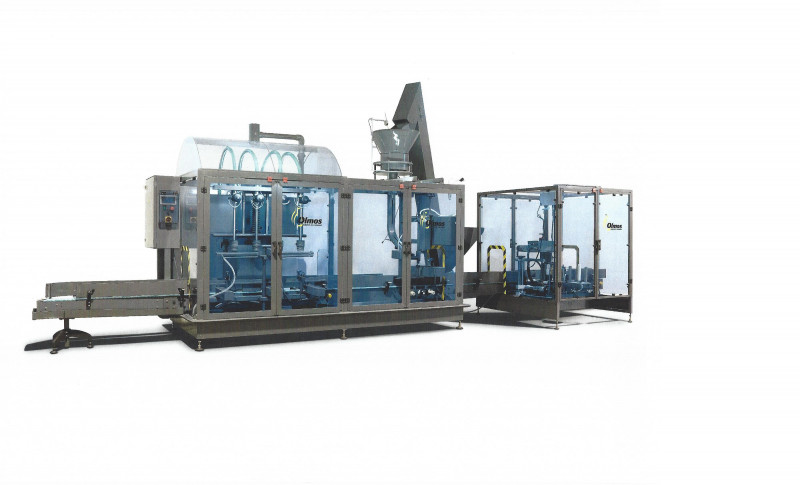

Linear Filling Machine for Corrosive Products

Modular, fully automatic linear filling machine specifically designed for the safe filling of corrosive products. Stainless steel frame coated with heat-welded PVC, with all product-contact parts manufactured in PVC, PVDF and titanium.

Fast and agile after-sales service. Grease-free maintenance and easy cleaning. No format change required.

General Features

Technical Specifications

Modular filler with 2, 4, 6, 8, 10 or 12 titanium dosing heads
Press-on and screw capper with torque control
Integrated inline labeller
Fully automatic machines with variable speed
Built-in cap hopper
Infeed and outfeed conveyors driven by variable speed motor
No format change · Grease-free maintenance · Easy cleaning

Filling Capacity

Small Format

0.25 l – 5 l

Large Format

5 l – 25 l

Construction Materials

Chemical Resistance

All product-contact parts are manufactured using high chemical resistance materials:

Stainless Steel

Main frame

Heat-Welded PVC

Outer coating

PVDF

Product contact

Titanium

Dosing heads

Line Equipment

Included Modules

Modular filler with 2 to 12 titanium dosing heads
Press-on capper with built-in cap hopper
Screw capper with torque control
Labeller integrated into the production line
Conveyors with variable speed drive

Request Information

Need more technical information?

Our team of engineers is available to advise you on machine configuration and the most suitable solutions for your production process.
